The Science of High-Pressure Misting | Why 1,000 PSI Has The Advantage For Rapid Cooling

What is the difference between a high-pressure misting system and a garden hose kit?

In a misting setting, a residential hose creates heavy water droplets that fall to the ground before they have a chance to evaporate. High-pressure systems atomize water into extremely fine droplets, often in the 10-15 micron range. This creates what is commonly called flash evaporation in misting: rapid evaporation of fine droplets before they reach people, furniture, or patio surfaces.

The standard for water pressure in a residential plumbing system hovers between 40 and 60 PSI (pounds per square inch). This target pressure is primarily to protect your plumbing fixtures from damage, but in a misting setting low pressure creates large, heavy droplets that fall to the surface without evaporating or cooling the area. This results in wet furniture, drenched guests, and with frequent use can cause moss and mildew buildup on the home.

In contrast, a true high-pressure misting system has an output pressure of around 1,000 PSI. At this pressure, the system is able to atomize the water into droplets small enough for rapid evaporation, creating a measurable temperature change of up to 30 degrees.

Why does evaporation matter for outdoor cooling?

Evaporation is the means through which heat is pulled out of surrounding air. When water is converted from a liquid to a vapor (evaporation) it requires a significant amount of energy. That energy comes from heat in the surrounding environment causing a rapid decrease in temperature in the immediate area.

This energy transfer is the same principle that your body utilizes to cool you off when you exercise or are working in the yard. When you sweat, the cooling effect is driven by the water evaporating off your skin and taking heat with it as it converts from a liquid state to a gas state.

Your high-pressure misting system takes this process and moves it away from your skin and into the surrounding air. As the droplets evaporate, they absorb heat from the surrounding air. In practical terms, the mist is robbing the patio area of heat before the water has a chance to land. This keeps your clothes, guests, and furniture dry while creating a more comfortable outdoor temperature.

The Science of Rapid Evaporation and Why 1,000 PSI Matters

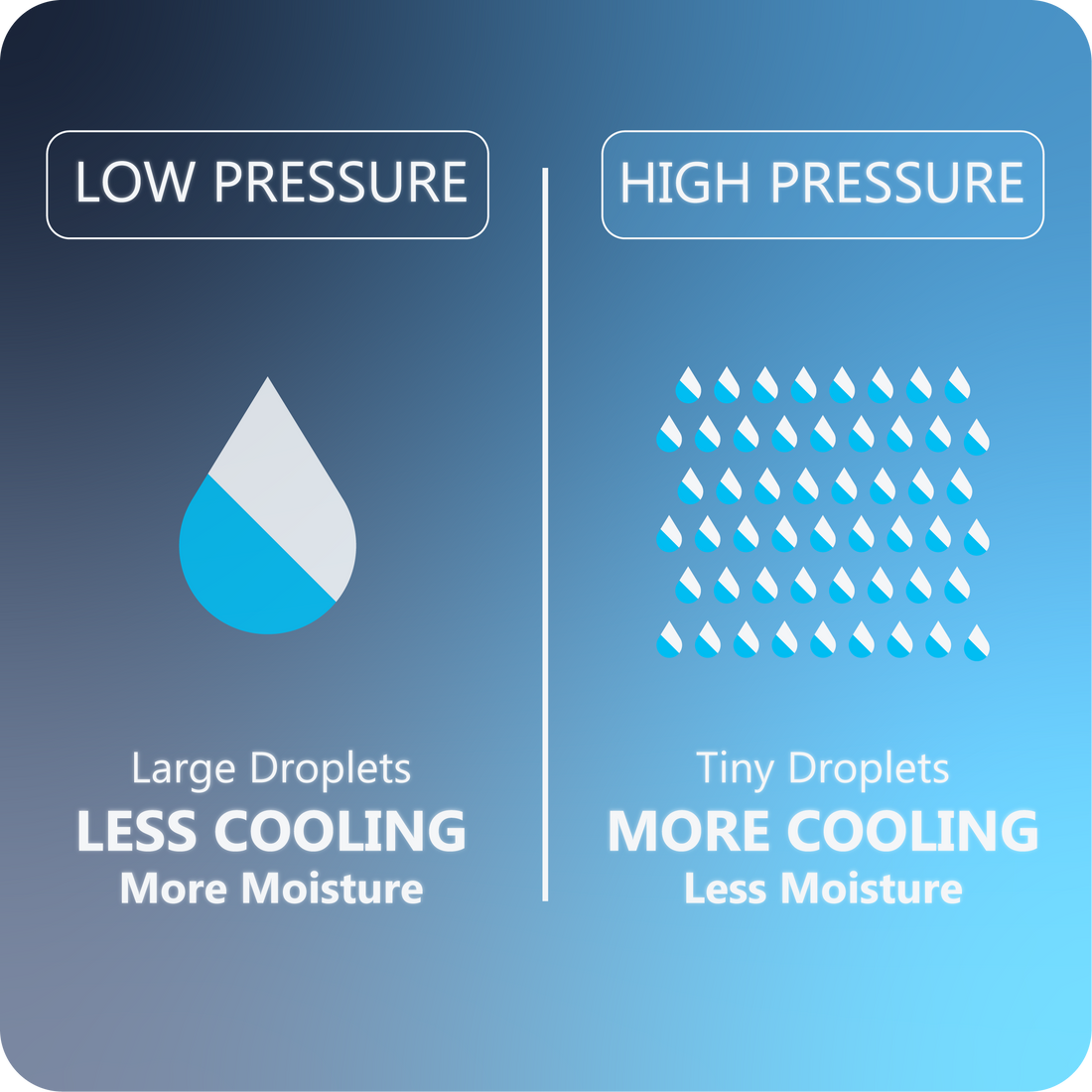

When we talk about rapid or flash evaporation, we are describing the rapid evaporation of extremely fine droplets after they leave the nozzle.  This can only be accomplished by breaking the water into incredibly fine droplets creating as much exposed surface area as possible.

Creating these fine droplets requires a tremendous amount of force.  At 1,000 PSI, the force is strong enough to overcome the surface tension and to atomize the droplets into a sufficiently small size that they can be rapidly evaporated, robbing the surrounding area of heat in the process.

With large droplets created by low- and mid-pressure misting systems, less of the water is exposed to the air creating an unfavorable condition for evaporation and temperature change. This results in a general lack of cooling, but also large amounts of residual moisture as the droplets aren't able to evaporate before they hit the ground. That residual moisture doesn't just drench clothing and furniture, but over time can create a buildup of mildew and mold if left untreated.

For a deeper dive into the role that droplet size plays in outdoor cooling and residual moisture, see our article showing how even a small change in droplet size can 20x the surface area and increase the evaporative efficiency of the system.

Achieving the 30 Degree Temperature Change

The more water droplets a system can evaporate into the surrounding air, the greater the temperature change can be achieved. This is accomplished with a careful balance of optimized nozzle spacing and powerful atomization of the water through high-pressure nozzles.

Nozzle Spacing: Spacing is not as simple as "the more the better".  To achieve the greatest temperature change, you want to be evaporating as much water as possible. If the misting nozzles are too close together, fine droplets can collide and combine into larger droplet sizes, preventing efficient evaporation. If the nozzles are too far apart, there is less overall water available for evaporation reducing your cooling capacity.

The goal should be minimal overlap of the cascading mist without creating large voids in the misting curtain. For high-pressure misting systems like Halo's, the optimal spacing for performance is 2 feet between nozzles.

Use caution, as manufacturers will push nozzle spacing out to 30 inches so that they can claim a larger coverage area or more linear feet without the increased expense of spacing them correctly.

Atomization: To accomplish the level of atomization needed for rapid evaporation, it requires strong mechanical force to break the surface tension of the droplets. The goal is to atomize the water down into droplets under 20 microns in diameter. This level of atomization allows for evaporation to occur within fractions of a second, long before the droplets can fall to the ground and create residual moisture.

To create a mechanical shear at this level, you need extremely high pressure, specifically in the range of 1,000 PSI. It should be paired with a high-end nozzle like Halo's FlashMist nozzle that is rated and optimized for those pressures.

Lower-pressure systems are not able to create the same droplet size distribution, which is why they struggle to deliver desirable results.
