Why does the size of the droplets matter?
The goal of any misting system is to create evaporation. As water evaporates, it absorbs heat from the surrounding air. The more efficiently the water evaporates before reaching people or surfaces, the greater the cooling effect.

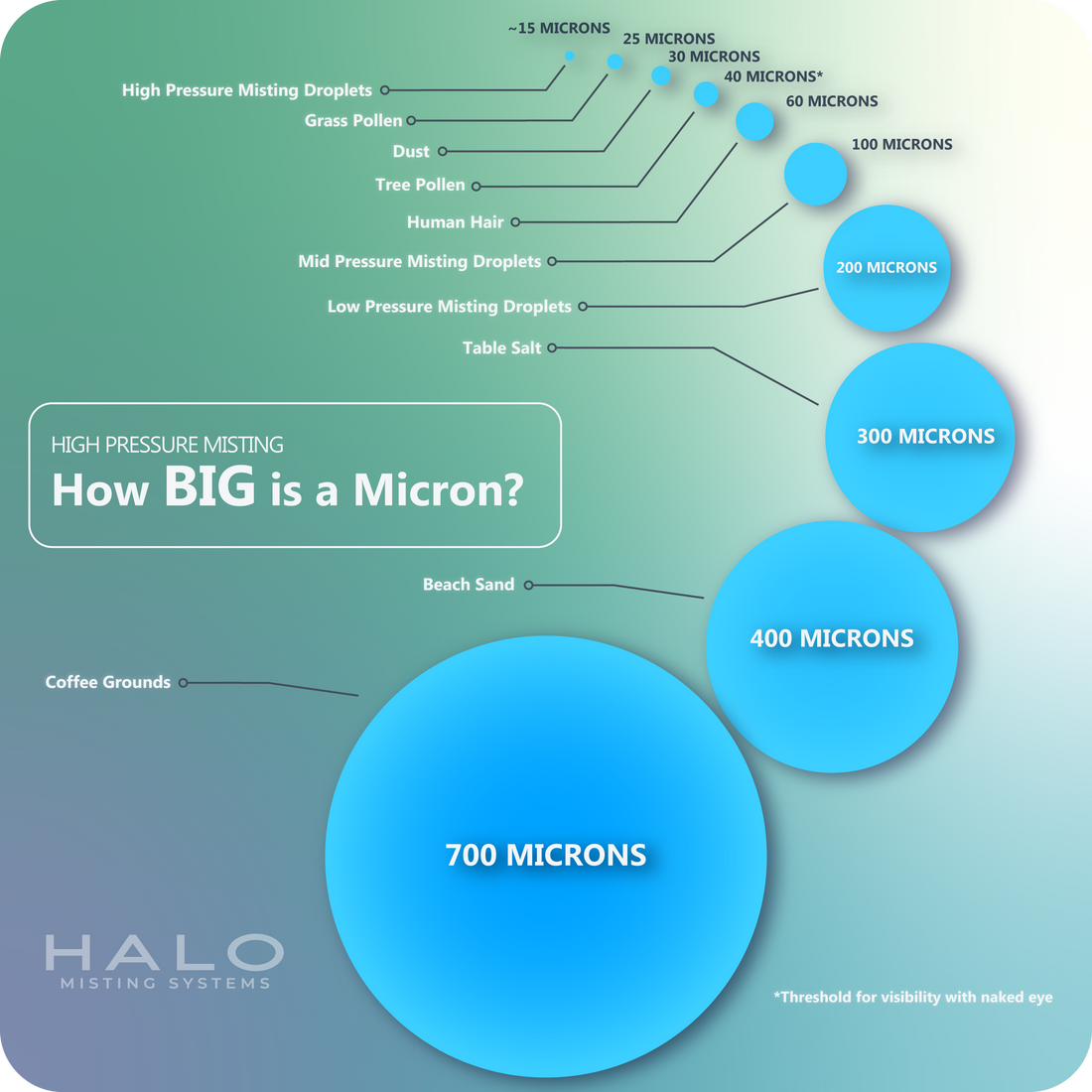

The efficiency of evaporation is strongly influenced by the amount of surface area exposed to the air. To increase the surface area as much as possible, the misting droplets need to be small enough to evaporate quickly. Misting droplets are so small that they are measured in microns. A micron, also written as µm, is one-millionth of a meter.
If larger surface area is best for efficiency, it may seem a little counterintuitive to want smaller droplets as opposed to larger ones. A single large droplet does have more surface area than a single small droplet, but it has a much less surface area relative to its total mass. If you can take a 200 micron (low pressure) droplet and instead break it into smaller droplets that are 10 microns in diameter (high pressure), the same amount of water in that one droplet creates 8,000 droplets and 20x the surface area.
This increase in surface area exposes a significantly larger percentage of water to the air for evaporation. That means the water evaporates more quickly and as that change from a liquid to a vapor happens it takes energy in the form of heat from the surrounding air.
On the opposite end of the spectrum, when the droplets are too large the impact is twofold. Not only are they unable to evaporate quickly and cool the surrounding air, but they also soak your furniture, dampen clothes, and cause your guests to be uncomfortable because the droplets are unable to evaporate before making contact with the surface.
How far do misting droplets fall before they fully evaporate?
| Starting Droplet Size | Estimated Time to Fully Evaporate | Estimated Fall Distance Before Full Evaporation | Likely Residual Moisture Locations |
|---|---|---|---|
| 10 µm | ~0.04 sec | ~0.0002 ft. | None: near-instant evaporation |
| 20 µm | ~0.16 sec | ~0.003 ft. | None: near-instant evaporation |
| 50 µm | ~1 sec | ~0.12 ft. | None: near-instant evaporation |
| 100 µm | ~4.1 sec | ~1.7 ft. | None: evaporates within 2 ft. of nozzle |
| 150 µm | ~9.3 sec | ~7.7 ft. | Seated and standing guests, some furniture |
| 200 µm | ~16.5 sec | ~21.5 ft. | Guests, furniture, and patio surfaces |
| 250 µm | ~25.8 sec | ~46 ft. | Guests, furniture, and patio surfaces |
For a deeper dive on this process and how it relates to how well your system cools the surrounding air you can learn more about the process in our article on the science of how evaporation impacts cooling performance.
What is the range of droplet size in misting systems?
On the high end of the scale, low-pressure or poorly optimized systems can produce droplets that can exceed 1,000 microns. On the smaller end, an optimized high-pressure system can produce droplets as small as 10-15 microns in diameter.
How do misting system droplet sizes compare by pressure?
| Type | Typical PSI | Approximate Droplet Size | Evaporative Performance |
|---|---|---|---|
| Low-Pressure Hose | 40-60 PSI | Often 200+ microns | Low |
| Mid-Pressure | 200-500 PSI | Often 100+ microns | Moderate |
| High-Pressure | 1,000 PSI | Can reach 10-15 microns | High |
Within any misting system, the droplets leaving each nozzle vary in size. Even high-pressure systems produce a distribution of droplet sizes, not one perfectly uniform droplet size. That is why a system capable of producing droplets as small as 10-15 microns can still create a visible mist curtain. Visibility depends on droplet concentration, lighting, airflow, and the larger droplets within the spray distribution.
That variation is a large reason why high-pressure misting systems dramatically outperform mid- and low-pressure systems. A mid-pressure system may seem adequate in a lab or on paper, but in real-world conditions the larger end of its droplet distribution is often what causes wetness and reduced comfort.
To illustrate, if a high-pressure misting system has a portion of its droplets leaving the nozzle at 45 microns instead of 15 microns, that same variation on a mid-pressure system takes the droplet sizes from 100 microns up to 300 microns. On a low-pressure system that variation is further magnified beyond 600 microns.
This is why low- and mid-pressure systems often result in wet clothes, wet furniture, and puddling on your patio. It isn't because of the smallest droplets they are capable of making, but the large and mid-size droplets leaving the nozzle that are unable to evaporate before they hit the ground.
The high-pressure systems reduce this problem by atomizing the water into much smaller droplets. Because the baseline droplet size is so much smaller, even the larger droplets in the distribution are more likely to evaporate before reaching people, furniture, or patio surfaces.
What impacts droplet size in a misting system
The size of droplets in any given misting system is dependent on a few key factors; the output pressure, nozzles, misting droplet collision, and system upkeep.
- Output Pressure: Output pressure is one of the largest factors in misting system performance because it helps determine how finely the water can be atomized. Mid- and low-pressure systems simply don't have the mechanical strength to break the surface tension and shear the droplets to a small enough size for rapid evaporation.
- Nozzles: Nozzles can directly control the droplet size, both intentionally and unintentionally. Some nozzle manufacturers will create different product lines for more humid environments that intentionally change the droplet size. Ensure you are using a high-quality nozzle that is rated for the high pressures of your misting system.
- Collision (Nozzle Spacing): Small droplets can collide and coalesce into larger droplets. If nozzle spacing is too tight, some fine mist can combine into larger droplets instead of thousands of smaller droplets. This is why nozzle spacing in a misting design is so important. You don't want the nozzles so close together that the misting columns have a significant amount of overlap. However, if you spread the nozzles out too far you are giving up on extra cooling capacity. For the best optimization on a high-pressure misting system you want the nozzles to be spaced approximately 2 feet apart.
-
System Upkeep: Over time filters reach capacity and nozzles may start to get mineral buildup. To maintain the high levels of atomization required for peak levels of cooling, ensure you are following any care and maintenance guide included with your misting system.
The practical takeaway is that droplet size matters because outdoor misting systems do not cool by simply spraying water into the air. They cool by evaporating water before it lands. The smaller and more consistent the droplet distribution, the more likely the system is to rapidly cool the surrounding air without soaking the space below.
If you have any further questions about this topic, or how our misting systems align with the recommendations in this article you can email us at support@halomistingsystems.com.
This article was researched and written by a real person to provide reliable, accurate, and applicable information for homeowners comparing outdoor misting systems.
